New: Springfield Armory Model 2020 Heatseeker

The new Model 2020 Heatseeker from Springfield Armory provides bolt-action precision and AR-style modularity in a single platform.

by
posted on May 20, 2025
** When you buy products through the links on our site, we may earn a commission that supports NRA's mission to protect, preserve and defend the Second Amendment. **
Springfieldheatseeker 1A

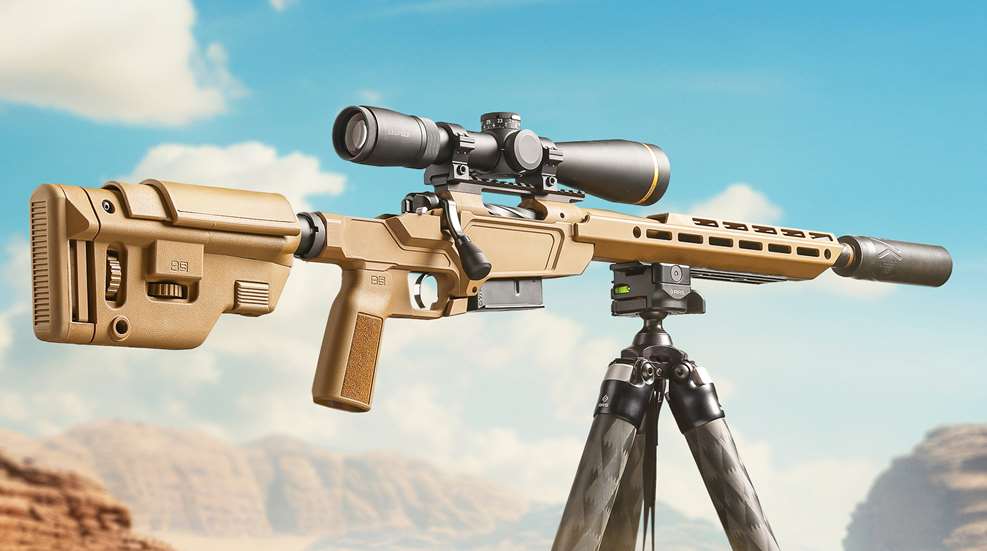

Springfield Armory’s new Model 2020 Heatseeker bolt-action rifle is suppressor-ready and, according to the company, “stands ready to deliver on the hunt or at the range.”
Photo courtesy Springfield Armory

Springfield Armory’s new Model 2020 Heatseeker is a compact, chassis-based rifle made for shooters seeking bolt-action precision and AR-style modularity in a suppressor-ready platform.

Model 2020 Heatseeker

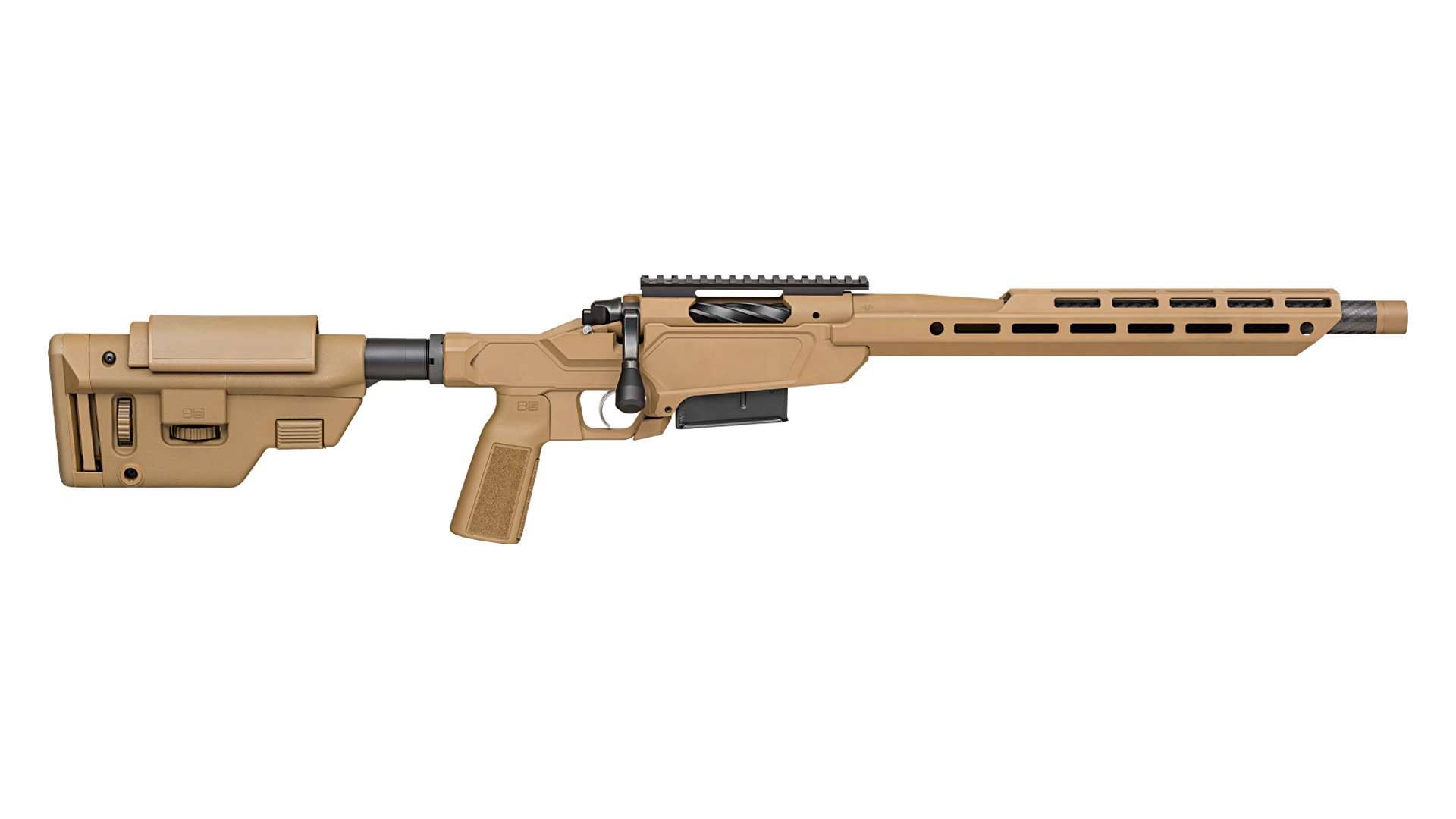

Springfield Armory’s new Model 2020 Heatseeker bolt-action rifle sports a Sharps Bros. Heatseeker M-Lok chassis, Model 2020 stainless-steel receiver with Coyote Brown Cerakote finish, a fluted bolt and 16-inch threaded barrel. (Photo courtesy Springfield Armory)



Sporting a Coyote Brown Cerakote finish, the Model 2020 Heatseeker bolt-action rifle is available chambered offered in .308 Win. or 6.5 mm Creedmoor and features a Sharps Bros. Heatseeker chassis.

Machined from a solid block of 6061-T6 billet aluminum, the Heatseeker chassis weighs only one pound, three ounces. The chassis includes a 14-inch long free-float handguard that weighs a svelte 10 ounces, with M-Lok on all four sides and dual quick-detach sling mounts on each side. For modularity, the chassis is designed with AR-style features like a buffer tube extension for mounting AR-pattern stocks and is designed to accept AR-pattern pistol grips. Additionally, the Model 2020 Heatseeker comes outfitted with a B5 Systems Collapsible Precision Stock (CPS) that is adjustable for both length of pull and cheek height, plus a matching CPS adjustable cheek piece and B5 Systems P-Grip 23.

Besides the modular chassis, the Model 2020 Heatseeker features Springfield’s custom-grade Model 2020 stainless steel-action. This action has dual locking lugs, a fluted bolt and EDM raceways. Mated to that action is a free-floated, 16-inch BSF barrel (1:18-inch twist) jacketed in a roll-wrapped, carbon-fiber sleeve and loaded under tension. For mounting a suppressor or muzzle device, the barrel’s muzzle is threaded 5/8x24 and features a thread-protector muzzle cap.

Model 2020 Heatseeker with suppressor

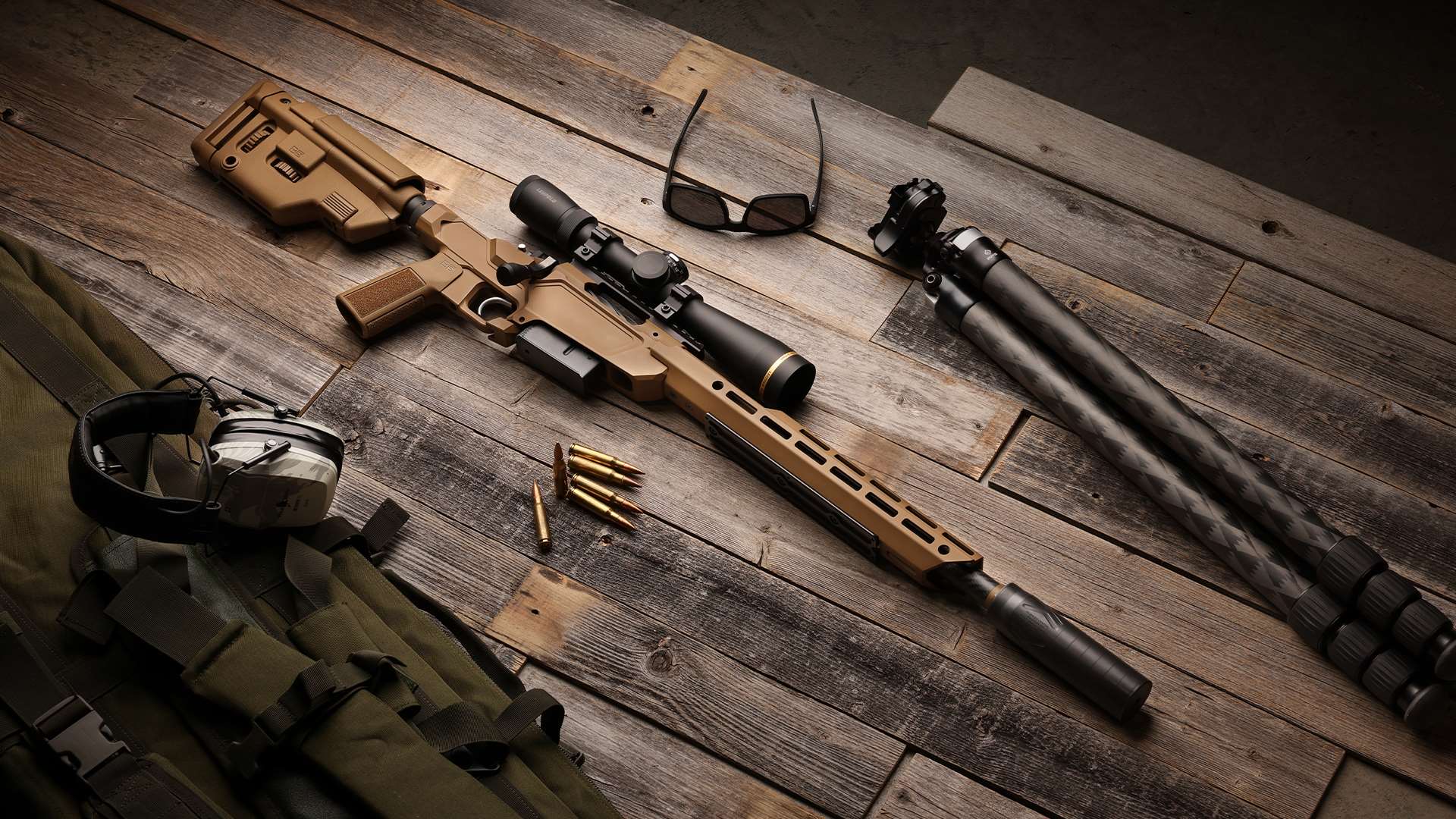

“This new Model 2020 Heatseeker adds a new dimension to the line, one that is as equally at home in the field as it is on the range,” Springfield Armory Vice President of Marketing Steve Kramer said. (Photo courtesy Springfield Armory)



A TriggerTech Field Trigger, adjustable for a pull weight from 2½ to five pounds, along with a metal, five-round AICS-pattern magazine round out the Model 2020 Heatseeker.

Springfield Armory said the rifle has “an impressive .75 MOA accuracy guarantee, making it ideal for demanding and serious shooters.”

MSRP for the Springfield Armory Model 2020 Heatseeker is $2,355. As mentioned, the new bolt-action rifle is available chambered in .308 Win. and 6.5 mm Creedmoor.

Learn more at springfield-armory.com.
